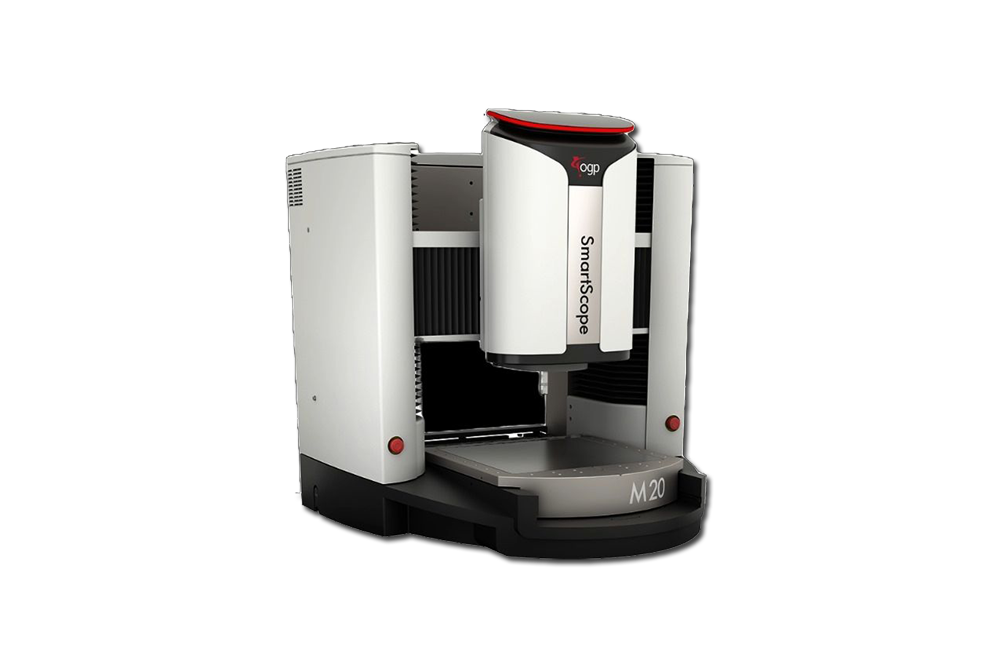

SMARTSCOPE M20
BENCHTOP 3D MULTISENSOR DIMENSIONAL MEASURING SYSTEM WITH FLOOR MODEL CAPACITY
XYZ Travel (mm)
300 x 300 x 250
SmartScope® M20 is the next evolution of the worldwide standard in 3D multisensor metrology.
The patented IntelliCentric™-M Optical System features fully telecentric fixed lens optics and VIRTUAL ZOOM™ technology, paired with a high-density 20 MP digital metrology camera and a built-in electronic aperture, delivering an ultra-high-resolution image with low distortion – perfect for high-speed edge detection metrology.
Ultra-High-Resolution Images – All LED coaxial, substage profile, and SmartRing™ light illumination comes standard
Sturdy, Stable Construction – Compact elevating bridge design with machined in squareness for built-in accuracy

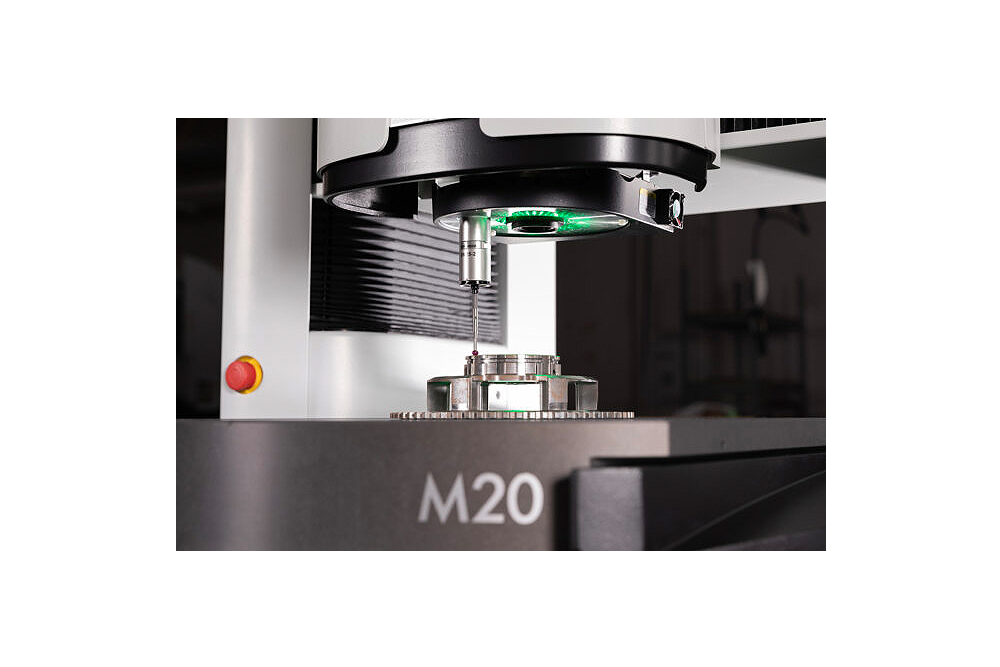

Multisensor Versatility – Optional TP-20 and TP-200 touch probes, SP-25 Scanning Probe, Feather Probe™, Through-the-Lens (TTL) Laser, Rainbow Probe™, TeleStar® Probe
TECHNICAL DATA
XYZ TRAVEL (MM)
250 x 150 x 200
OPTICS
Fixed optical magnification with digital zoom, M 11.5 standard lens
Optional
M 20.10 Wide Field-of-View / Long Working Distance
M 6.3 High Magnification
Focus Grid Projector
ILLUMINATION
Standard
Substage LED profile, coaxial LED surface, SmartRing™ LED ring light (green)
SOFTWARE
SENSORS & ACCESSORIES
Tactile Sensors
Non-contact Sensors
Accessories
