INDUSTRIAL METROLOGY SYSTEMS

OGP. Quality Control. Peace of Mind.

OGP’s Industrial metrology systems are used during manufacturing process, ensuring quality and accuracy of manufactured parts and components. With over 75 years of technical innovation for industrial metrology, OGP is recognized worldwide as a customer trusted supplier of non-contact and multisensor dimensional measuring systems.

In today’s world, improved productivity is everyone’s goal. OGP’s innovative measurement technology provides precision for people – precision measurement systems designed for the people who use them.

MULTISENSOR MEASUREMENT SYSTEMS

Multisensing provides complete 3D measurement data from a single measuring machine. Video, contact probes, laser and micro-probes combine for total part characterization, with better accuracy, in a fraction of the time it would take to do on separate measuring systems.

Smartscope
SmartScope

One of the world's most popular and
versatile dimensional measurement
system for precision measurement challenges

Fusion
Fusion

Large Field-of-View
3D Multisensor Systems

VIDEO MEASUREMENT SYSTEMS

Automatic Video Measurement Systems – SprintMVP™ automatic measurement systems provide dimensional measurement and CNC programmed operation for precision needs.

Semi-Automatic Video Systems – StarLite™ semi-automatic measurement systems are precision instruments designed for the easy focusing and positioning of your parts.

SNAP Large FOV Video Measuring Systems – SNAP™ measurement systems make complex measurements easy and accurate – it’s as simple as placing a part on the stage and pressing go.

StarLite™

A compact, self-contained and programmable
semi-automatic video measuring system

SprintMVP 1500
SprintMVP™

Sets the standard for fully automated
3-axis measurement performance and rugged
granite construction, precision motorized stages
and flexible zoom optics

LASER SCANNING SYSTEMS

A full line of laser scanner systems are available from OGP, delivering the right solution for any measurement needs.

ShapeGrabber 3D Scanners – automated 3D scanners are ideal for measuring complex-shaped parts where speed, complete coverage and ease-of-use are important

Lazer 200 – Non-contact, self-contained laser metrology system

ShapeGrabber Ai620
ShapeGrabber

Automated 3D Scanning Systems

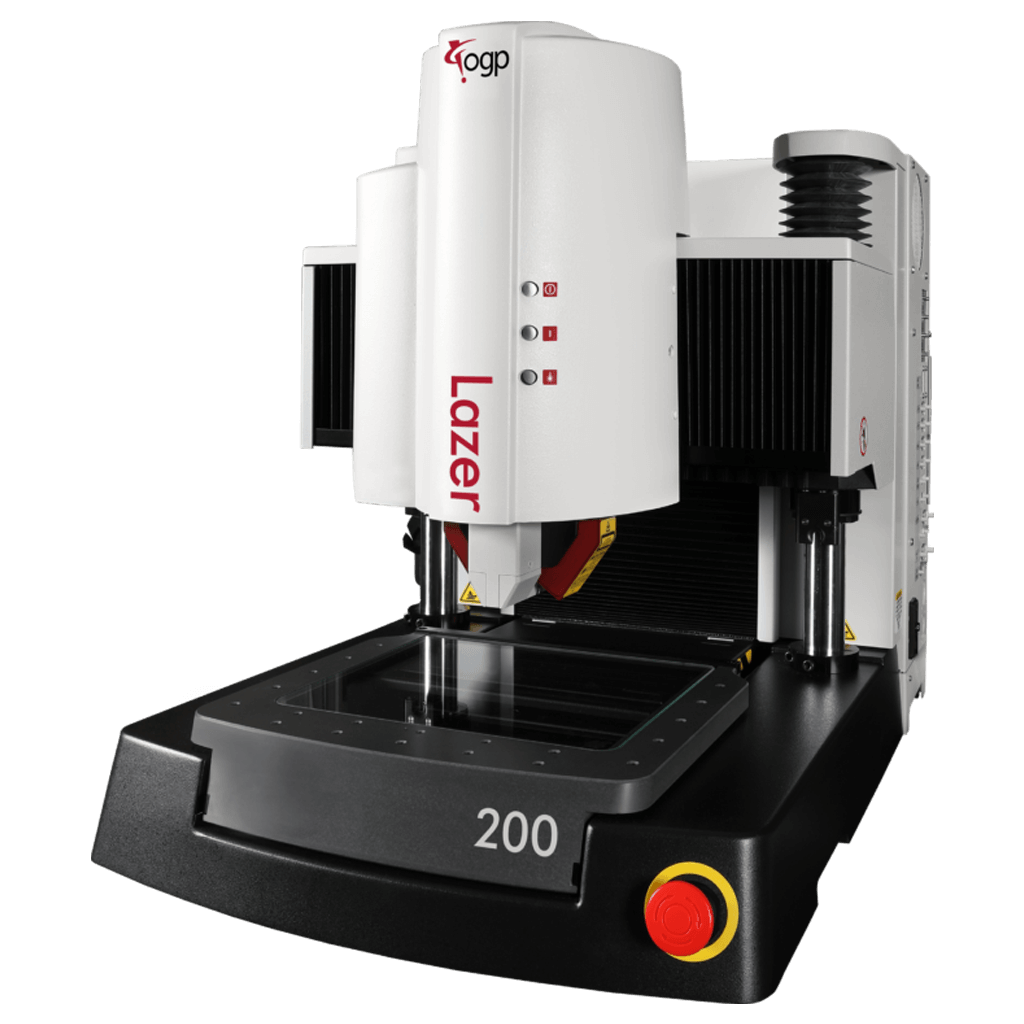

Lazer 200

Innovative non-contact measuring system that uses laser scanning with video

OPTICAL MEASURING MACHINES

Manufacturing with Quality – from start to finish
Optical measurement machine (OMM) refers to 2-axis non-contact measuring system that uses image processing technology with metrology software to analyze images obtained through optics or camera (or both) on the sample placed on moving stage with illuminations.
There is various type of OMM offer by Optical Gaging Products (OGP).

Optical Comparators / Profile Projectors – Optical comparators are a mainstay of shop-floor measurement. Contour Projectors Horizontal Optical Comparators from OGP use telecentric optics to ensure size measurements are accurate even when the image is not perfectly focused, allowing any user to achieve precise measurements with ease.

SNAP™ LFOV Inspection Systems – These are compact measuring systems that integrate perfectly from the shop floor, to the lab, or as part of an automated work cell. Rugged construction and an open work envelope make SNAP easy to implement in virtually any manufacturing setting.

TurnCheck™ systems – These are precision optical instruments designed to measure shafts and other cylindrical parts. Each member of the TurnCheck family is built for ease of use and consistent accuracy, even in difficult shop-floor conditions are precision optical instruments designed to measure shafts and other cylindrical parts. Each member of the TurnCheck family is built for ease of use and consistent accuracy, even in difficult shop-floor conditions.

Profile Projector

Profile Projectors combine cutting-edge
optics, lighting, and automation technologies
for enhanced productivity and profitability.

SNAP 200
SNAP - LFOV Inspection Systems

Make complex measurements easy
and accurate - it's as simple as placing
apart on the stage and pressing go

TurnCheck
TurnCheck

Fast, easy way to measure your shafts,
cylinders and other turned, ground or extruded parts

COORDINATE MEASURING MACHINE

The all-new generation of coordinate measuring machines (CMMs) from OGP offers the multisensor advantage, supporting a wide range of tactile and non-contact sensors. Linked with the powerful ZONE3 CAD based metrology software provides complete flexibility for multisensor measurement.

FlexPoint – the new generation of large format multisensor coordinate measuring system. The unique combination of sensors provides a wide variety of dimensional measurement solutions for large format parts.

FlexPoint™

A new generation of large
format multisensor CMMs

LEGACY SYSTEMS

With 80 years of technical innovation for metrology, OGP is recognized worldwide as a customer trusted supplier of non-contact and multisensor dimensional measuring systems. On occasion, it becomes necessary to discontinue a product.

Cobra
Cobra Series

Discontinued Q3, 2024

SprintMVP 1500
SprintMVP Series

Discontinued Q1, 2025

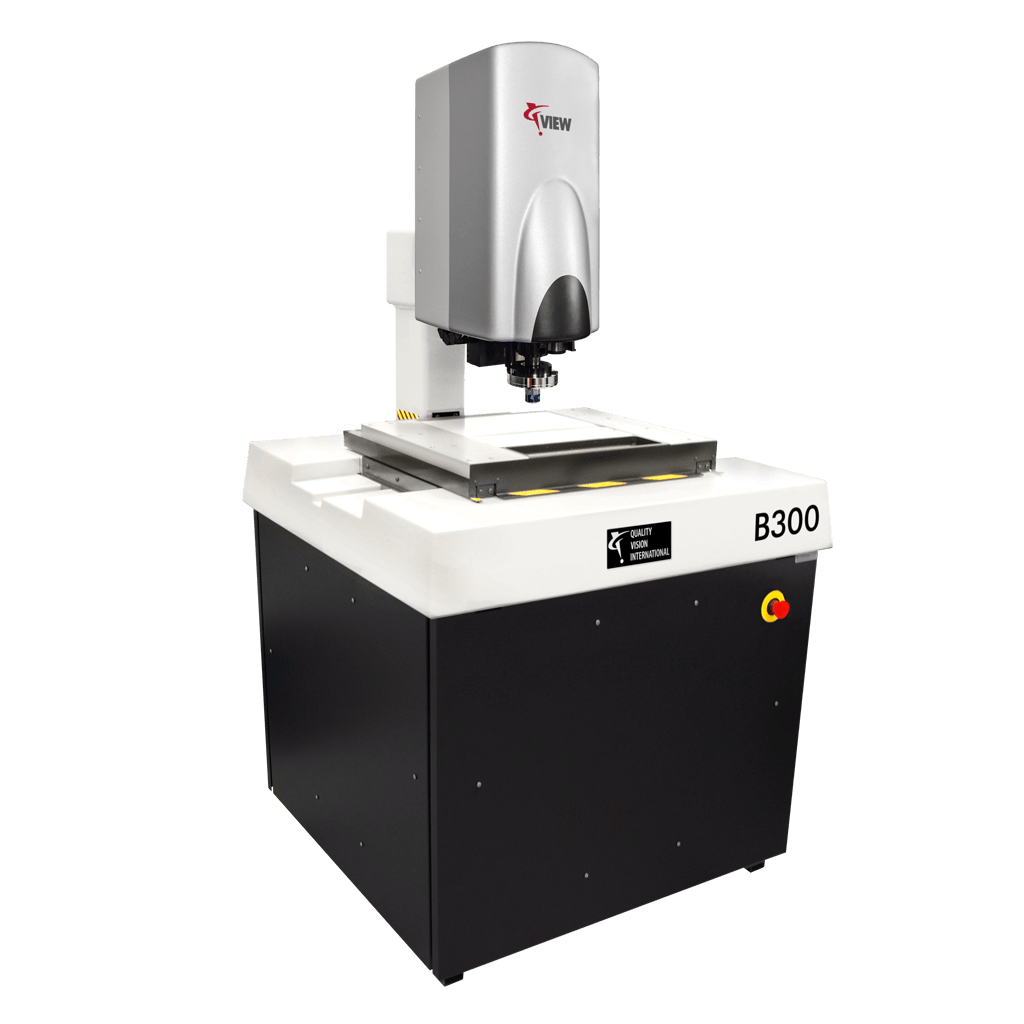

VIEW Benchmark 300

Discontinued Q1, 2025

VIEW Benchmark XLT

Discontinued Q1, 2025

Starlite 300
StarLite 250/300

Discontinued Q1, 2025

Microline AF Series

Discontinued Q1, 2025

QL-30 Contour Projectors

Discontinued Q1, 2025

ShapeGrabber Ai310
ShapeGrabber Ai310

Discontinued Q1, 2025

Previously Discontinued

The following systems have been retired in the more distant past.

  • AG Slides
  • Avant Apex
  • Avant Supra
  • Avant
  • Basic Bench
  • BL-10
  • CC-14L
  • CC-16
  • CC-16L
  • CC-30
  • Clip Plus
  • Data Star
  • DiMetric
  • DiMetric Plus
  • Excello 808
  • Excello 810
  • Excello 814
  • Excello 826
  • Galaxy
  • Intelligent Qualifier
  • LT-14
  • Omis
  • OMIS II
  • StarLite 200
  • SprintMVP 200
  • Spark
  • Onyx
  • OQ-14, OQ-14A, OQ-14B
  • OQ-20, OQ-20C, OQ-20S
  • OQ-30, OQ-30-S, OQ-30A, OQ-30B
  • OVP, Optical Video Probe
  • QL-14
  • Q-SEE
  • Scan Fit & Measure
  • SmartScope ATS
  • SmartScope Flare
  • SmartScope FOV
  • SmartScope MVP
  • SmartScope Top Bench
  • SmartScope Zip Advance
  • SmartScope Flash 250
  • Video Direct Microscope
  • Vidicom Qualifier
  • VidiProbe Qualifier
  • Vidiscope
  • XL-14, AL-14C, XL-14S
  • XL-30
  • XL-809
  • XL-815
  • XL-827
