SENSORS & ACCESSORIES
OGP has consistently led the industry with a succession of innovative systems and sensors to tackle even the most difficult measurement challenges.
TACTILE PROBES
By using a scanning probe or by single point probing with a touch trigger probe on select OGP video and multisensor measuring systems, you can access features that are difficult for video measurement, or beyond the range of other sensors. Scanning provides data on simple and complex surface contours.
Articulating Probe Head
For the ultimate in probing
flexibility use either a touch trigger
or scanning probe with a PH10 Plus
Feather Probe
Micro-touch probing to measure
fragile or miniature features
Scanning Probe
Automatically acquires data points
between user-defined start and
end points - regardless of surface complexity
Touch Probe
Single point touch trigger probing
extends measurement versatility
of measurement systems from OGP
LASER SENSORS
Laser options for OGP measurement systems provide non-contact scanning and high accuracy focus points as part of multisensor measurement routines.
DRS Laser
Dynamic range sensor laser for
height and surface profile measurements
Rainbow Probe
High resolution, non-contact
optical sensor for surface measurements
TeleStar Plus Through-the-Lens (TTL) Laser
Long working distance, high
resolution interferomatrix range sensor
TeleStar Probe
Self-contained off-axis partial
coherence interferomatrix range
sensor for surface contour measurement
Through-The-Lens (TTL) Laser
An integrated laser options
for select OGP measurement systems
OPTICAL SENSORS
Modern advancements in camera and optic technology makes video measurement a pragmatic choice when considering a multisensor metrology solution that is both fast and accurate. Video measurement systems today offer telecentric optics, high resolution cameras, through-the-lens laser scanning, and supplemental tactile probes to provide full measurement capability ranging from compact, benchtop systems to high capacity models. Combining both optical and tactile measurement methods would be a sound strategy for creating future benefits, by minimizing the need for multiple measurement systems.

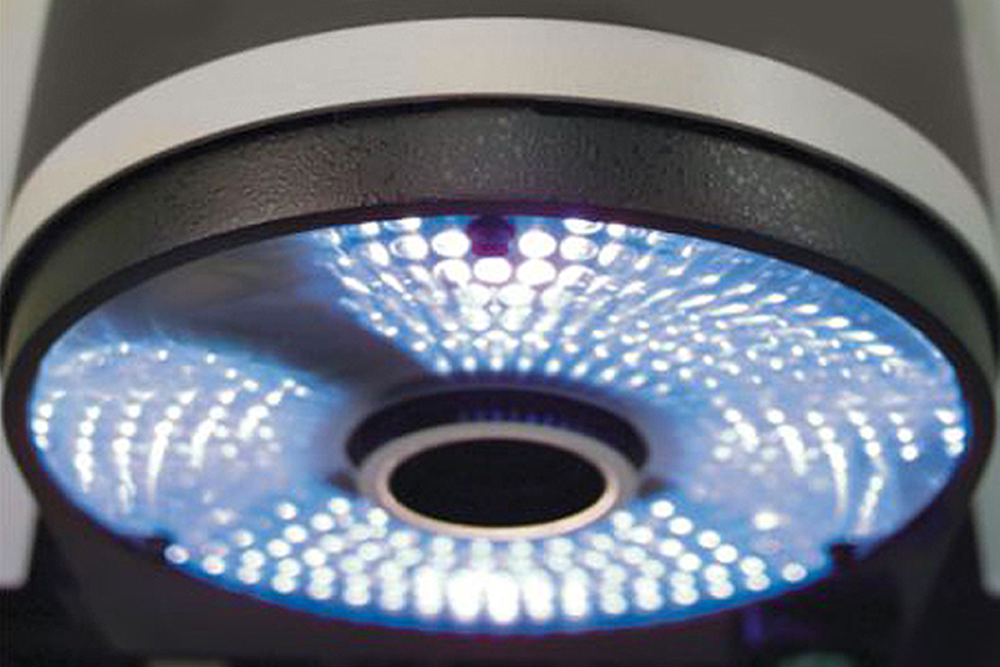

SmartRing Light
Accomplish difficult task by
providing light that is programmable
for both direction and incidence angle
Grid Projectors
High resolution, non-contact
optical sensor for surface measurements
Video Sensors
Fast, non-contact video
measurement provides high accuracy
and repeatability for defined dimensions
ROTARY INDEXERS
Symmetric parts and parts with important features on many sides can be fully characterized on our measurement systems with rotary indexers. Available with different capacities and resolutions, as well as simple and compound configurations, rotaries allow complete 4 and 5 axis measurement in a single setup.

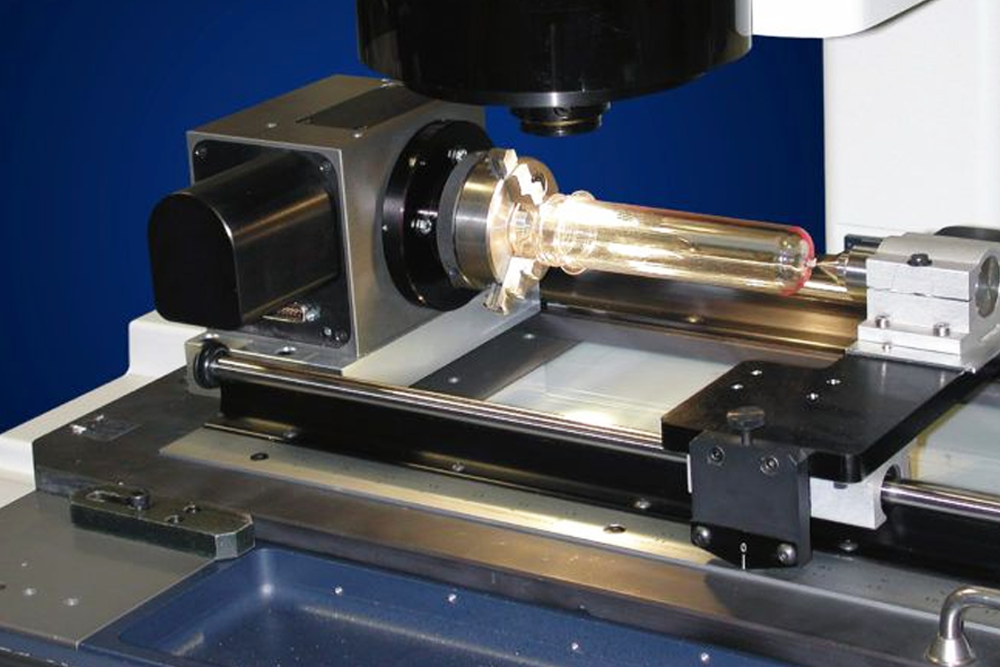

Micro-Theta Rotary (MTR)
Brings true fourth
measuring capability to OGP
dimensional measurement systems
Miniature Servo Rotary (MSR)
Compact angular positioning
device offering mounting flexibility
in orienting rotational axis
High Precision Rotary (HPR)
Compact programmable angular
positioning device that features
a precision air-bearing spindle
Heavy Duty Rotary (HDR)
Machine tool type rotary
designed to hold heavy parts
Dual Rotary Indexers
Automatic part rotation to
present features to available sensors
at set angles for subsequent measurement
