SMARTSCOPE E-SERIES
FULLY AUTOMATIC FIXED LENS 3-AXIS VIDEO MEASUREMENT SYSTEMS
The SmartScope® E-Series debuts the fixed lens IntelliCentric™ optical system – fully telecentric optics providing a crisp high-resolution image with a 1.0x lens (available in 2.0x). The 5x digital zoom assures instantaneous magnification ideal for swift directional changes, while the all-Led coaxial and SmartRing™ Vector Light Ring supplies all-angle illumination.
Offering multi-sensor versatility to enable full compatibility with video, touch probe and rotary sensors, the SmartScope E-Series is ideal for a wide range of applications from production parts to jigs and fixtures.
Featuring Measure-X metrology software for powerful programming within a single-operator-friendly user interface, the SmartScope E-Series allows easy-to-use end-to-end automation of the measuring process, with time and cost-saving software functionality.
Advanced integrated software packages include full set image processing and autofocus tools, easy editing, background data transfer to MeasureFit Plus contour analysis software, and geometric functions for tolerance, measurement and reporting – making measuring smoother than ever before.
Combining world-class data with sturdy designs and an array of cutting-edge features, the SmartScope E-series has everything you need to measure success.
BENEFITS | FEATURES |
|---|---|
High Resolution Images | IntelliCentric® Fixed Lens Optical System
|
Instant Magnification Changes | 5 Position Digital Zoom |
Efficient, Accurate Multisensor Measurements | Optional TP-20 and TP-200 Touch Probes |
Ability to Rotate Parts for Full Coverage | Optional MSR™ Miniature Servo Rotary |
Fast and Accurate Measurements in a Clear, Easy-to-Use UI | Measure-X Metrology Software |
SmartScope E7
Benchtop model automated digital zoom metrology system that sets the standard for 3-axis video measurement.

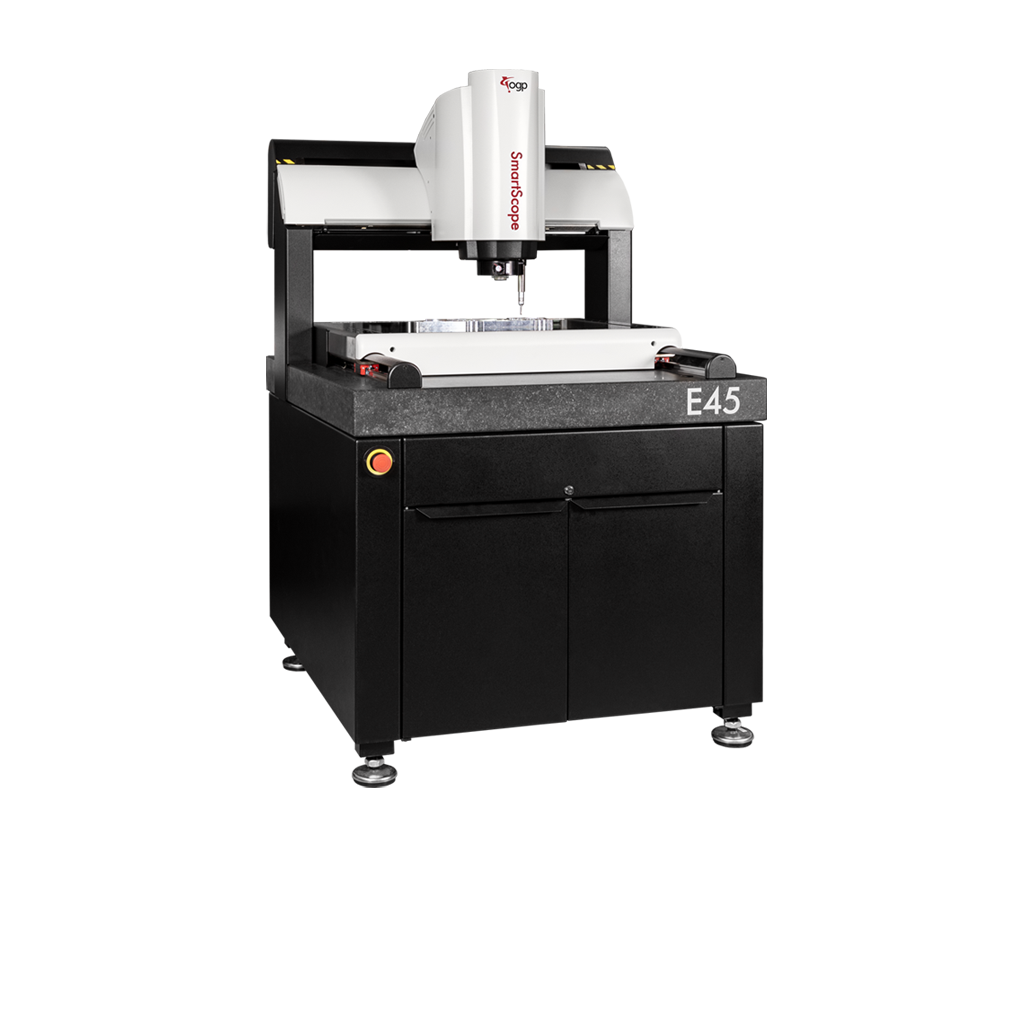

SmartScope E45
Floor model automated digital zoom metrology system that sets the standard for 3-axis video measurement.
