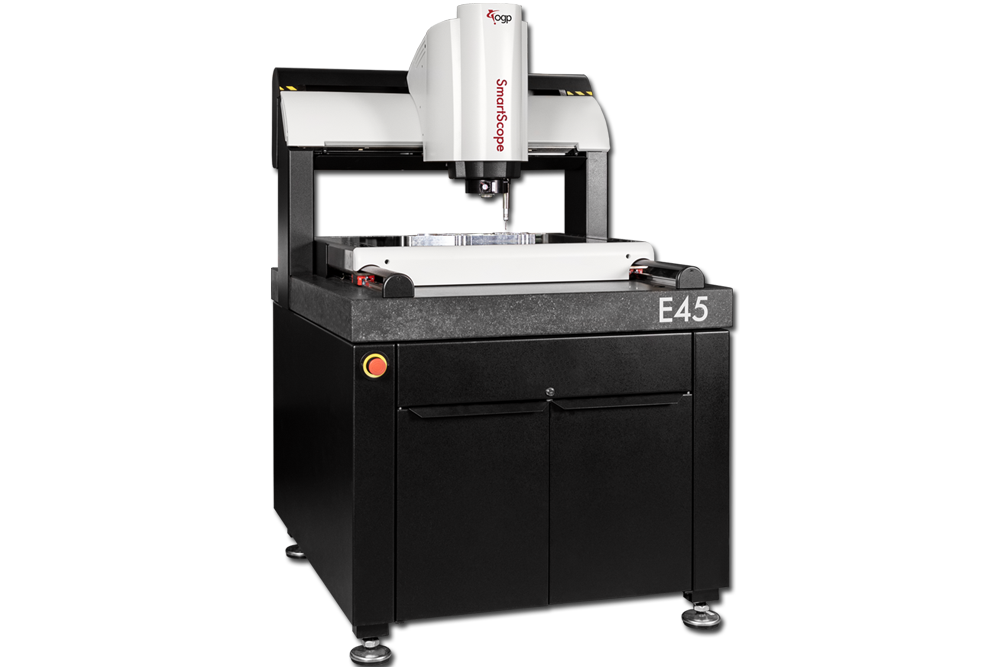

SMARTSCOPE E45
FULLY AUTOMATIC MEASUREMENT SYSTEM THAT SETS THE STANDARD FOR 3-AXIS VIDEO MEASUREMENT
XYZ Travel (mm)
500 x 450 x 200
SmartScope® E45 sets the standard for 3-axis video measurement performance.
The fixed lens IntelliCentric™ optical system and digital zoom provide a high resolution image engineered for video edge detection metrology.

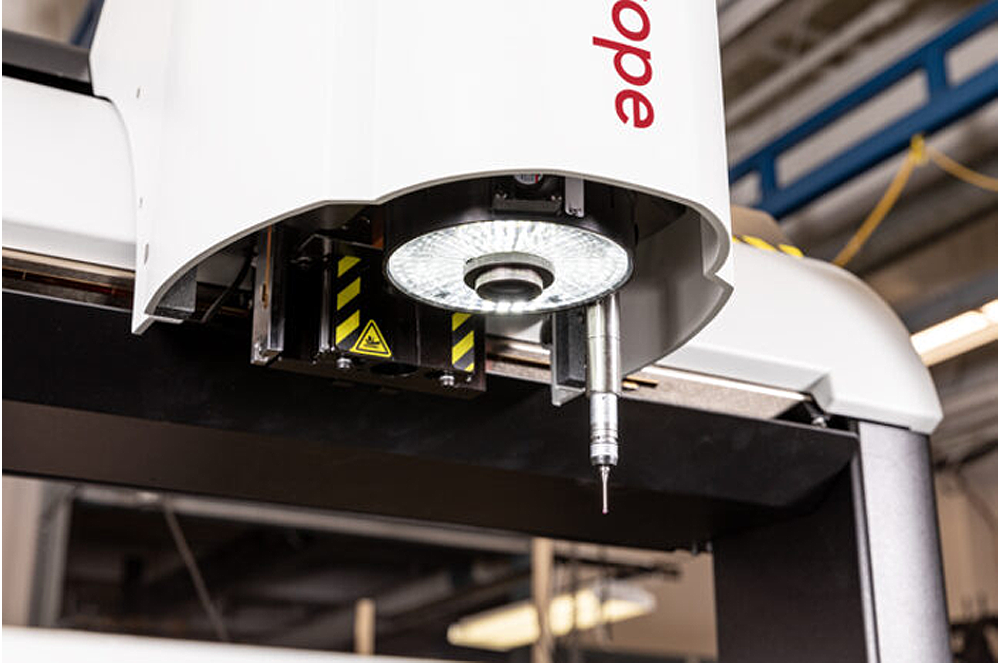

Advanced Lighting – All LED coaxial, substage profile, and SmartRing™ light illumination comes standard
Sturdy, Stable Construction – Parts move on a precision DC motor-driven Y-axis stage while the optics travel in the X-axis mounted on a rigid bridge support structure for metrological integrity
Multisensor Versatility – Optional TP-20 and TP-200 touch probes
TECHNICAL DATA
XYZ TRAVEL (MM)
500 x 450 x 200
Optional
Extended Y axis, 610 mm; extended Z axis, 300 mm
OPTICS
Fixed optical magnification with digital zoom, E 8.10 standard lens
Optional
E 4.5 high magnification lens
ILLUMINATION
Standard
Substage LED profile, coaxial LED surface, SmartRing™ LED ring light
SOFTWARE
SENSORS & ACCESSORIES
Tactile Sensors
Accessories
