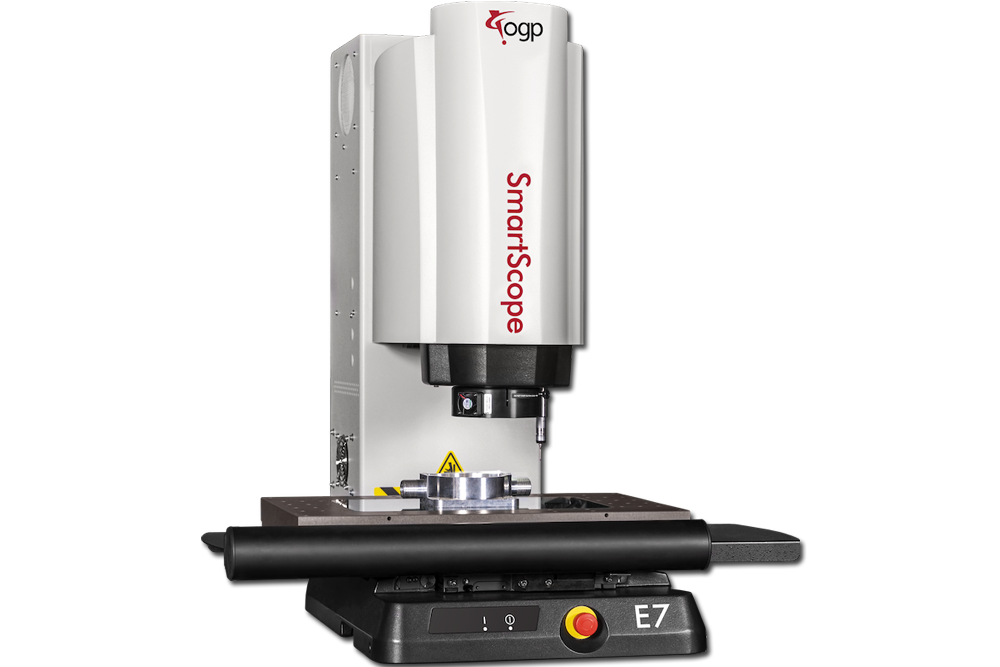

SMARTSCOPE E7
FULLY AUTOMATIC MEASUREMENT SYSTEM THAT SETS THE STANDARD FOR 3-AXIS VIDEO MEASUREMENT
XYZ Travel (mm)
250 x 150 x 200
300 x 150 x 200
SmartScope® E7 sets the standard for 3-axis video measurement performance.
The fixed lens IntelliCentric™ optical system and digital zoom provide a high resolution image engineered for video edge detection metrology.

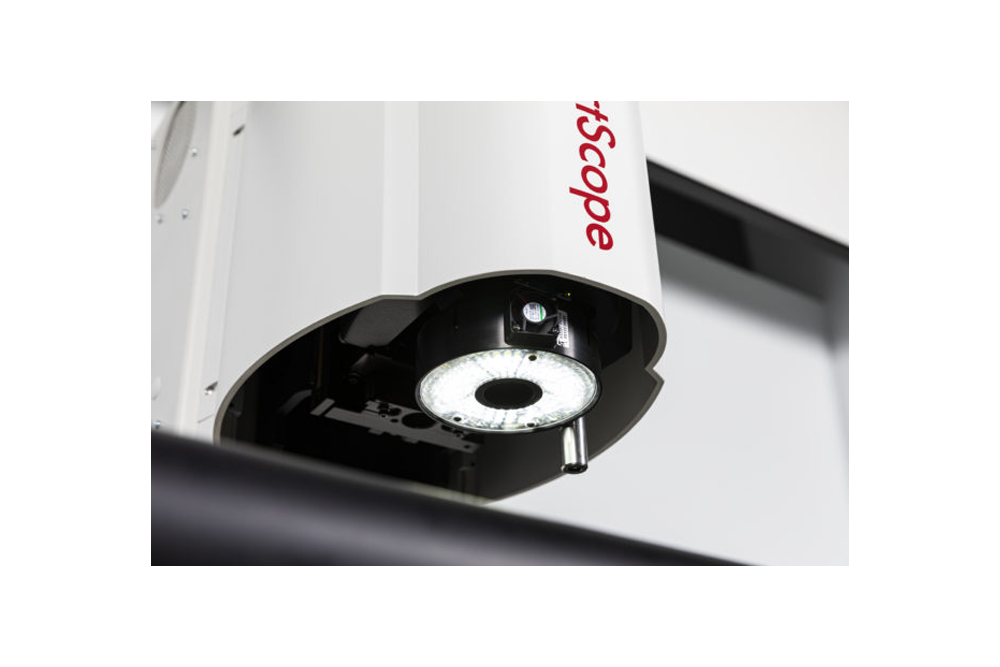

Advanced Lighting – All LED coaxial, substage profile, and SmartRing™ light illumination comes standard
Sturdy, Stable Construction – A heavy-duty cast base and integral compound stage with Y-axis center drive provides stability
Multisensor Versatility –Optional TP-20 and TP-200 touch probes
Previous slide
Next slide
TECHNICAL DATA
XYZ TRAVEL (MM)
250 x 150 x 200
300 x 150 x 200
OPTICS
Standard
Fixed optical magnification IntelliCentric™ with digital zoom, 5 zoom positions, 1.0x lens
Fixed optical magnification IntelliCentric™ with digital zoom, 5 zoom positions, 1.0x lens
Optional
Replacement Lenses: 2.0x
ILLUMINATION
Standard
Substage LED profile, coaxial LED surface, SmartRing™ LED ring light
SOFTWARE
SENSORS & ACCESSORIES
Tactile Sensors
Accessories
