SMARTSCOPE M-SERIES
The Next Evolution of the Worldwide Standard in 3D Multisensor Metrology
SmartScope® M-Series systems combine innovative advancements in optical technologies delivering an incredibly high-resolution image, providing users with exceptionally accurate measurement results – affording confidence to move at top speeds from line to line and part to part – for faster setups, shorter cycle times, and increased throughput.
SmartScope M-Series feature the patented IntelliCentric™-M Optical System: fully telecentric fixed lens optics and VIRTUAL ZOOM™ technology, paired with a high-density 20 MP digital metrology camera and a built-in electronic aperture, delivering an ultra-high-resolution image with low distortion – perfect for high-speed edge detection metrology.
SmartRing™ light is standard for the ultimate flexibility in surface illumination, along with an all-LED backlight and coaxial surface light.
A variety of optional tactile, laser, and advanced non-contact sensors make SmartScope M-Series systems the best multisensor measurement choice for leading manufacturers around the world.
BENEFITS | FEATURES |
|---|---|
Ultra-High-Resolution Images | IntelliCentric-M Optical System |
Instantaneous Zoom with Improved Measurement Resolution | VIRTUAL ZOOM Technology |
Robust Multisensor Measurements Handling the Toughest Features | Optional Tactile, Laser, and Advanced Non-Contact Probes |
Ability to Rotate Parts for Full Coverage | Optional 4th and 5th Axis Rotaries |
The World’s Most Comprehensive Metrology Software | ZONE3 Metrology Software |

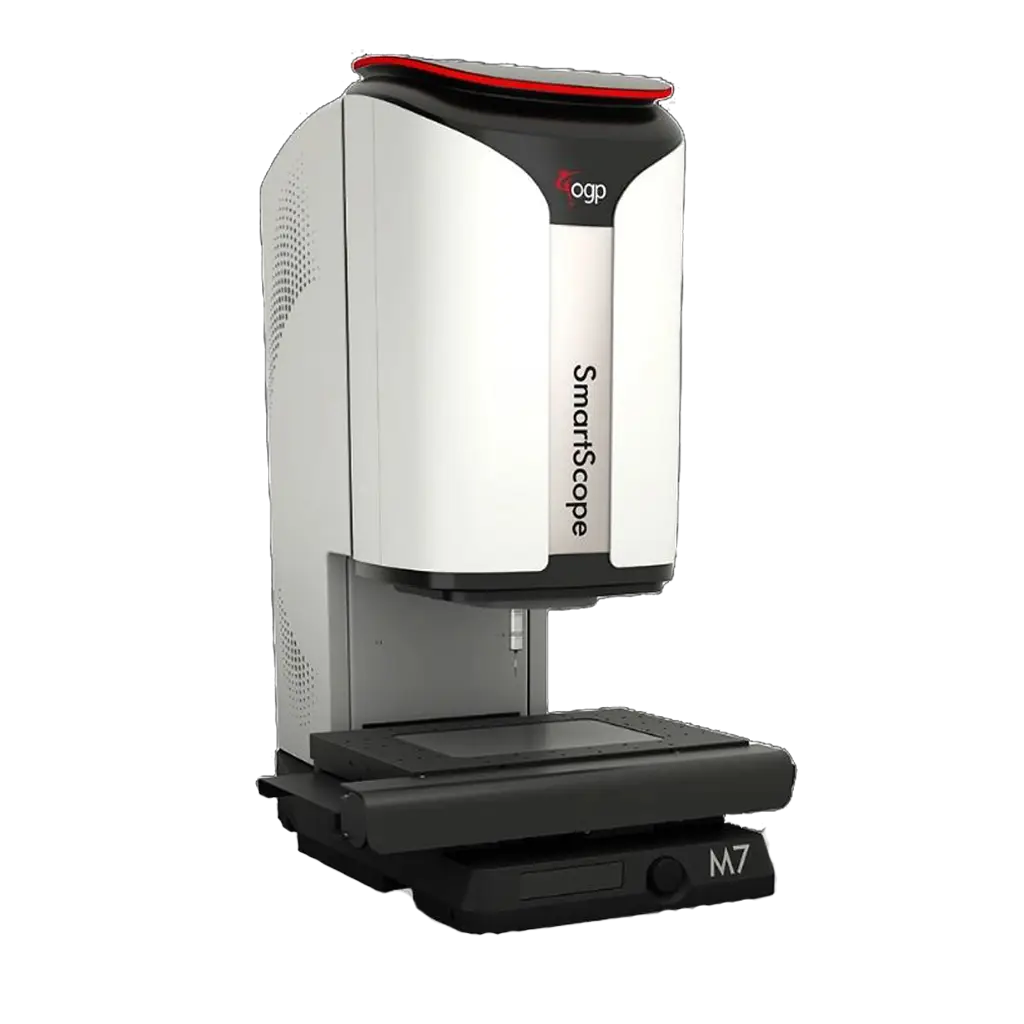

SmartScope M7
Benchtop 3D Multisensor Dimensional Metrology System.
SmartScope M20
Benchtop 3D Multisensor Dimensional Measuring System with Floor Model Capacity

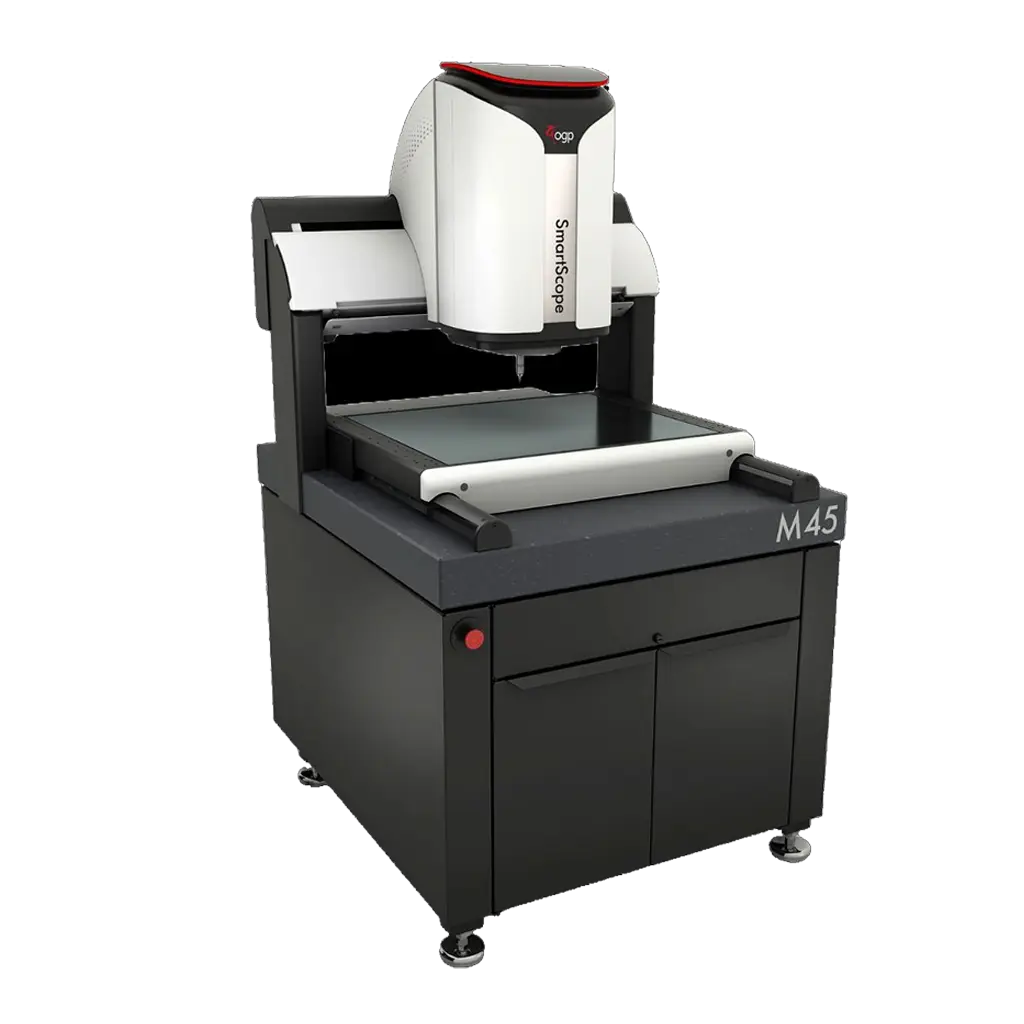

SmartScope M45
Large Capacity 3D Multisensor Dimensional Measuring System
